Electric Arc Spray System

Suzhou Airico Machinery Equipment Co., Ltd. is a leading manufacturer in China that specializes in the development and manufacture of spraying equipment. We pioneered the development of touch screen controlled plasma equipment (Airico-180) (Airico-3710) (Airico-100), supersonic spraying equipment (Airico-500) (Airoco-8800) (Airico-M2plus) (Airico-M3plus), arc spraying equipment (Airoco400-Airico1000), which are widely used in the spraying industry. The coating quality has reached the level of similar foreign products and has won unanimous praise from domestic and foreign customers. If you are interested in our Electric Arc Spray System, please feel free to contact us.

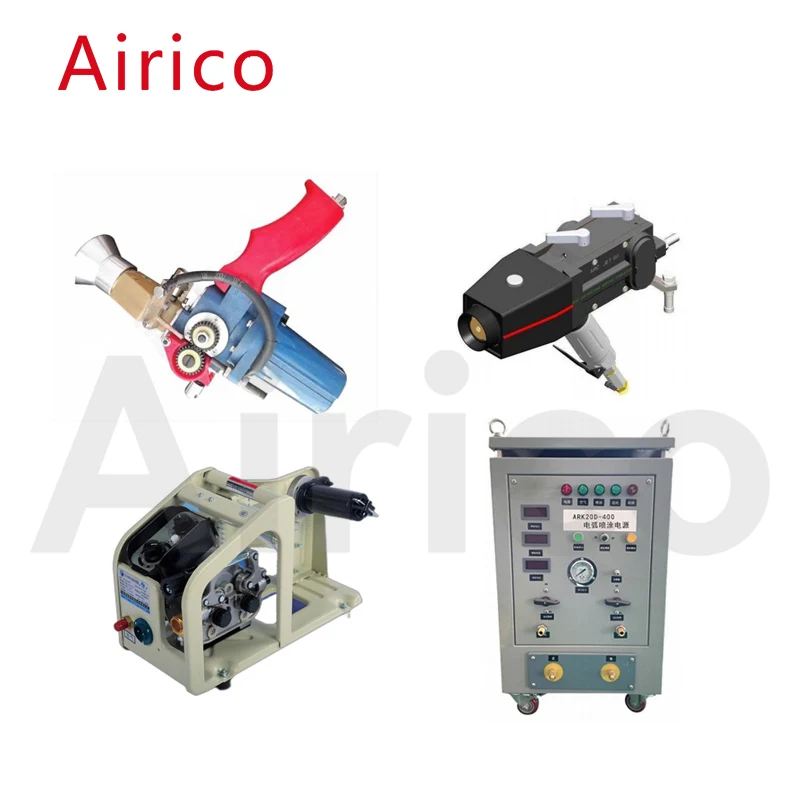

Airico-400 Pull type (push type) arc spray gun

Arc parameters

Wire feeder

The arc spraying wire feeder is suitable for arc spraying and is used for dual wire feeding. There are two types of wire feeding: charged control and non charged control. The wire feeding speed specification is available for users to choose from. Main technical parameters: wire feeding voltage DC24V, 5A, wire feeding method is symmetrical and uniform, wire diameter Ø 3.0mm, wire reel capacity Ø 300 × Ø 50 × 103mm, wire feeding speed range of 1-7 meters/minute for 20kg.

characteristic：

1. The coating efficiency is high, and the spraying material can reach 20kg/h using zinc wire.

2. The bonding strength between the coating and the substrate is high.

3. The spray deposition rate is high, with a zinc deposition rate of up to 75%.

4. The wire feeding speed should be consistent and stable, and a slow wire feeding function should be added when starting the arc to ensure fast and reliable arc starting.

5. It can work continuously at high power and stably for a long time.

Airico-400 Power supply for electric arc spray system

The arc spraying machine is mainly used for large-area anti-corrosion of steel structures, surface repair of worn or machined parts, and preparation of capacitive conductive coatings

2、 Main spraying materials: zinc, aluminum, etc

3、 According to the production needs of different working conditions, this arc spray gun can be fixed on the machine tool to spray regular large workpieces

4、 This power supply integrates the control of spray gun operating conditions, wire feeding speed regulation, and gas pipeline, making it an ideal specialized equipment for arc spraying

5、 For distribution systems with leakage protection and zero sequence protection, this equipment is particularly convenient for wiring

6、 The power supply and control system are integrated, suitable for both push and pull series of arc guns

7、 Operating procedures and equipment malfunctions are reflected on the panel indicator lights, and necessary spraying data is indicated on the panel

8、 When paired with other devices, it can be controlled by the device (to be specified at the time of ordering)

9、  The box board is plug-in, with simple opening and closing, compact equipment structure, and easy maintenance and repair

10 、 The connection of high current inside the power supply adopts copper bars, which have reliable conductivity

11、 The spray gun is equipped with a 20 meter cable, air hose, and eight core control cable, with a range radius of up to 20 meters (to be specified at the time of ordering).

Airico-400 Power parameters of electric arc spray system
