Arc Coating Equipment

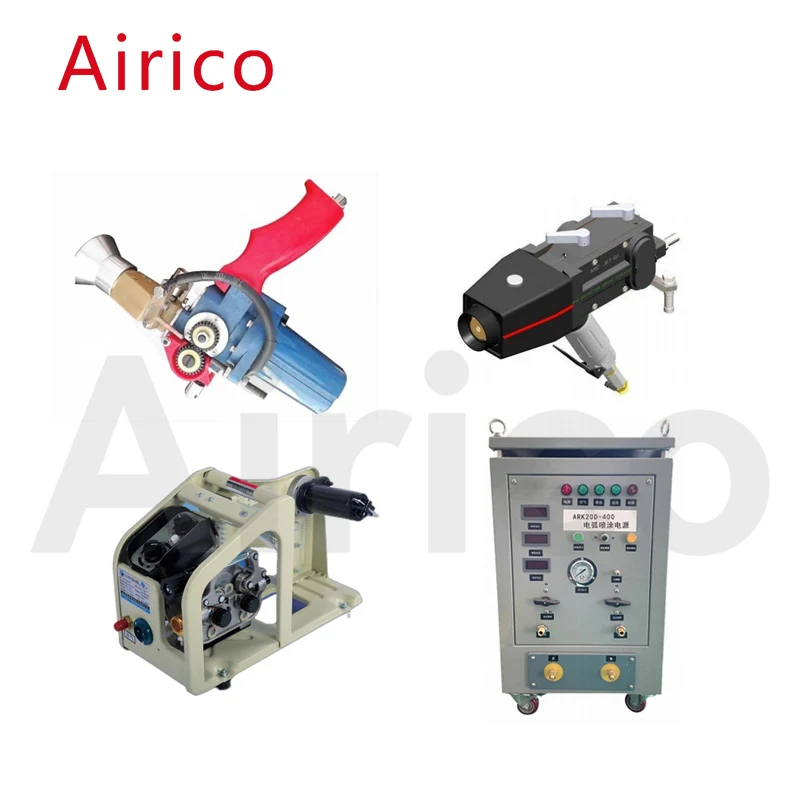

Airico-400 Arc Coating Equipment spray gun

Arc parameters

Wire feeder

The arc coating equipment is suitable for arc spraying and is used for dual wire feeding. There are two types of wire feeding: charged control and non charged control. The wire feeding speed specification is available for users to choose from. Main technical parameters: wire feeding voltage DC24V, 5A, wire feeding method is symmetrical and uniform, wire diameter Ø 3.0mm, wire reel capacity Ø 300 × Ø 50 × 103mm, wire feeding speed range of 1-7 meters/minute for 20kg.

characteristic：

1. The coating efficiency is exceptional, allowing the spraying material to achieve a rate of 20kg/h when using zinc wire.

2. The bond strength between the coating and the substrate is robust.

3. The spray deposition rate is impressive, with a zinc deposition efficiency reaching up to 75%.

4. The wire feeding speed must be consistent and stable. Additionally, a slow wire feeding function should be incorporated during arc initiation to ensure swift and dependable arc starting.

5. It is capable of operating continuously at high power levels with remarkable stability over extended periods.

Airico-400 Power supply for arc coating equipment

The arc coating equipment is mainly used for large-area anti-corrosion of steel structures, surface repair of worn or machined parts, and preparation of capacitive conductive coatings

2、 Main spraying materials: zinc, aluminum, etc

3、 According to the production needs of different working conditions, this arc spray gun can be fixed on the machine tool to spray regular large workpieces

4、 This power supply integrates the control of spray gun operating conditions, wire feeding speed regulation, and gas pipeline, making it an ideal specialized equipment for arc spraying

5、 For distribution systems with leakage protection and zero sequence protection, this equipment is particularly convenient for wiring

6、 The power supply and control system are integrated, suitable for both push and pull series of arc guns

7、 Operating procedures and equipment malfunctions are reflected on the panel indicator lights, and necessary spraying data is indicated on the panel

8、 When paired with other devices, it can be controlled by the device (to be specified at the time of ordering)

9、  The box board is plug-in, with simple opening and closing, compact equipment structure, and easy maintenance and repair

10 、 The connection of high current inside the power supply adopts copper bars, which have reliable conductivity

11、 The spray gun is equipped with a 20 meter cable, air hose, and eight core control cable, with a range radius of up to 20 meters (to be specified at the time of ordering).

Airico-400 Power parameters of arc coating equipment
