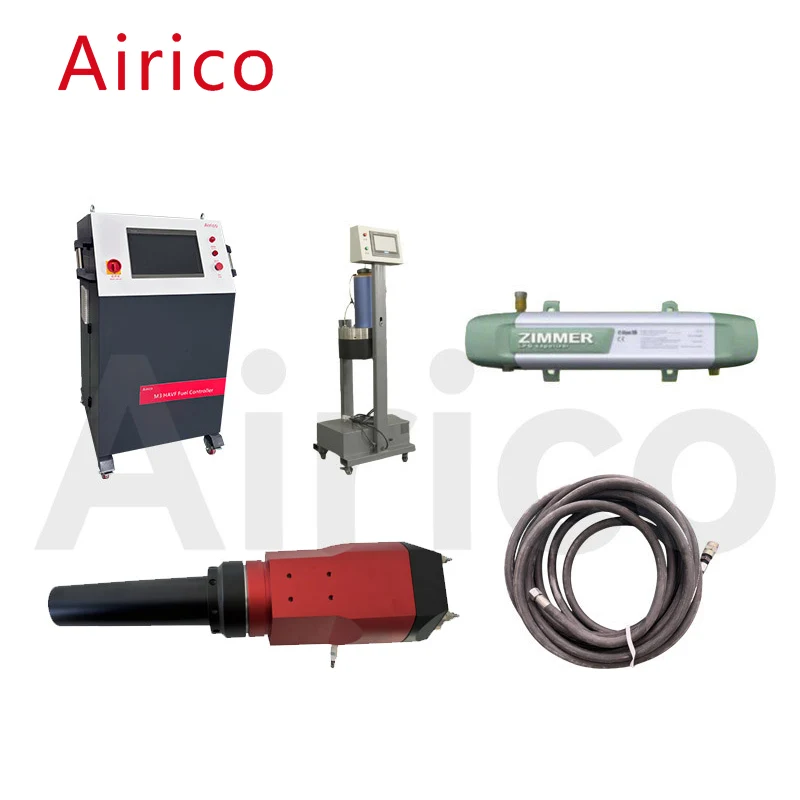

The design of the spray gun is inspired by the principle of a rocket engine. Its flame velocity is as high as more than 2000 meters/second. It not only has high output power, but also supports stepless adjustment. The spray gun adopts an innovative axial center powder feeding method. This powder feeding method allows the powder to be fully melted and evenly distributed in the flame, thereby significantly improving the coverage efficiency and overall quality of the coating.

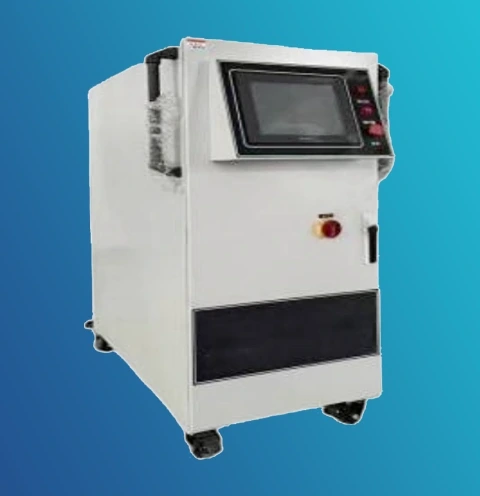

The cold gas dynamic spray equipment also has the function of storing and calling process recipes. Users can add, modify or save process parameters as needed. In terms of fuel control, the system adopts a fully closed-loop design, combined with modular design and high-performance PLC control, ensuring the stability and convenience of operation.
The coating prepared by the Airico-M3 cold spray system has excellent performance, with extremely low porosity, with an average porosity of less than 0.5%, and a spraying efficiency of up to 30 kg of powder per hour.
The Airico-M2 cold spray control system has advanced levels compared to similar foreign products, with superior performance and easy operation. It can achieve fully digital operation of the spraying process, and real-time monitoring of the spraying parameters of the system, which can immediately respond to system failures.
|
Number |
Project |
Basic parameters |
|
1 |
Control type |
Touch screen+MFC mass flow meter+Siemens PLC control |
|
2 |
Rated power |
550W |
|
3 |
Supply Voltage |
AC220V 50Hz |
|
4 |
Work environment |
Indoor, room temperature |
|
5 |
Kerosene pressure/flow rate |
1.2Mpa 15~24L/h |
|
6 |
Oxygen pressure/flow rate |
1.6Mpa 800-1100L/h |
|
7 |
External dimensions of control cabinet |
500mmx1050mmx1364mm |
|
8 |
Control cabinet weight |
80KG |
This type of powder feeder adopts foreign technology, upgrades the control system, and is convenient for cleaning powder. The main gas of the spray gun is used as the powder feeding gas. The sprayed powder is transported to the outlet of the powder feeder through the rotation of the porous powder feeding tray. The powder leaves the powder feeding bucket together through the gas pressure and enters the spray gun. The speed of the servo motor on the touch screen is adjusted to adjust the powder feeding amount.
|
Number |
Project |
Basic parameters |
|
1 |
Powder delivery method |
Scraper pneumatic type |
|
2 |
Single cylinder capacity |
3.0L |
|
3 |
Powder gas delivery |
Nitrogen or argon |
|
4 |
Gas pressure for powder delivery |
0.4-1.2Mpa |
|
5 |
Powder feed rate |
0~160g/min |
|
6 |
Powder delivery accuracy |
±1% |
|
7 |
Powder delivery gas flow rate |
0-25L/min |
|
8 |
External dimensions of powder feeder |
900mmx450mmx1650mm |
|
9 |
Weight of powder feeder |
50KG |
|
Vaporizer Type/Model |
Indirect丨Dry-Electric丨Feed Out |
|||||
|
|
Model |
Z25 |
Z40 |
Z50 |
Z100 |
Z150 |
|
Hazardous Area Classification |
|
Class I, Division 1, Group D,T3; Ex d IIA T3 Gb |
||||
|
Approvals |
|
UL/ULc,CE(ATEX &IECEx),PED(SEP) |
||||
|
Vaporization Capacity |
Kg/hr |
25 |
40 |
50 |
100 |
150 |
|
|
US Gal/hr |
12.5 |
20 |
25 |
50 |
75 |
|
|
MMBTU/hr |
1.1 |
1.8 |
2.2 |
4.5 |
6.8 |
|
Liquid Inlet Connection |
|
1/2" FNPT |
1/2"FNPT |
1/2" FNPT |
3/4"FNPT |
3/4" FNPT |
|
Vapor Outlet Connection |
|
1/2" FNPT |
1/2" FNPT |
1/2"FNPT |
3/4"FNPT |
3/4"FNPT |
|
Design Pressure (MAWP) |
|
250 psig-17.2 barg |
||||
|
Relief Valve Set Point |
|
250 psig-17.2 barg |
||||
|
Hydrostatic Test Pressure |
|
375 psig-25.9 barg |
||||
|
Unit Dimensions |
|
26.7"Lx9.5"Hx8.3"W |
67.2"Lx9.5"Hx8.3"W |
|||
|
|
|
677mmLx241mmHx210mmW |
1706mmLx241mmHx210mmW |
|||
|
Shipping Dimensions |
|
34" Lx 11"H x 14" W |
75"Lx 11" H x 14" W |
|||
|
|
|
863mmLx280mmHx356mmW |
1905mmLx280mmHx356mmW |
|||
|
Shipping Weight |
|
55 lb/25 Kg |
145 lb/66 Kg |
|||
|
Optional Accessories |
|
Tank Mount Kit; Tank Mount Piping Kit; Wall Mount Kit;Strainer and Piping |
Floor Mount Kit;Wall Mount Kit,Strainer and Piping Kit;Regulator/Gauge Kit;Drain Valve Kit |
|||

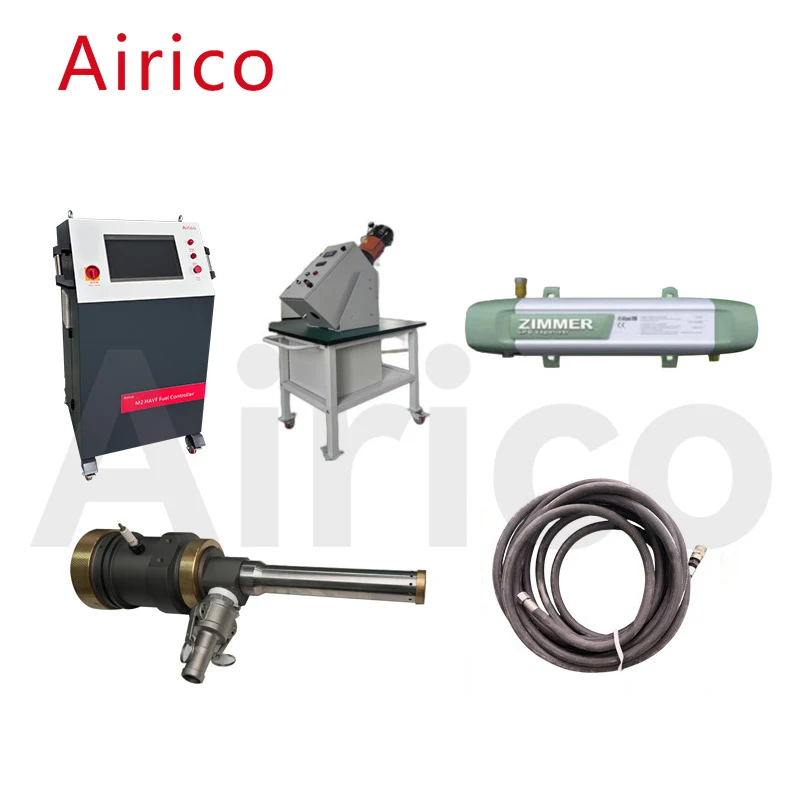

The Airico-M2 spray gun uses propane as fuel, air as combustion and cooling gases, and nitrogen for powder feeding. The spray gun can work continuously and stably for a long time.
|
Number |
Project |
Basic parameters |
|
1 |
Flame speed |
2100m/s |
|
2 |
Cooling method |
Air cooling |
|
3 |
Coating porosity |
0.1%-0.3% |
|
4 |
Bond strength |
＞85Mpa |
|
5 |
Suitable powder size for spraying |
10-45μm |
|
6 |
Work environment |
Fireproof and ventilated soundproof room |
|
7 |
Spray gun external dimensions |
80mmx90mmx300mm |
