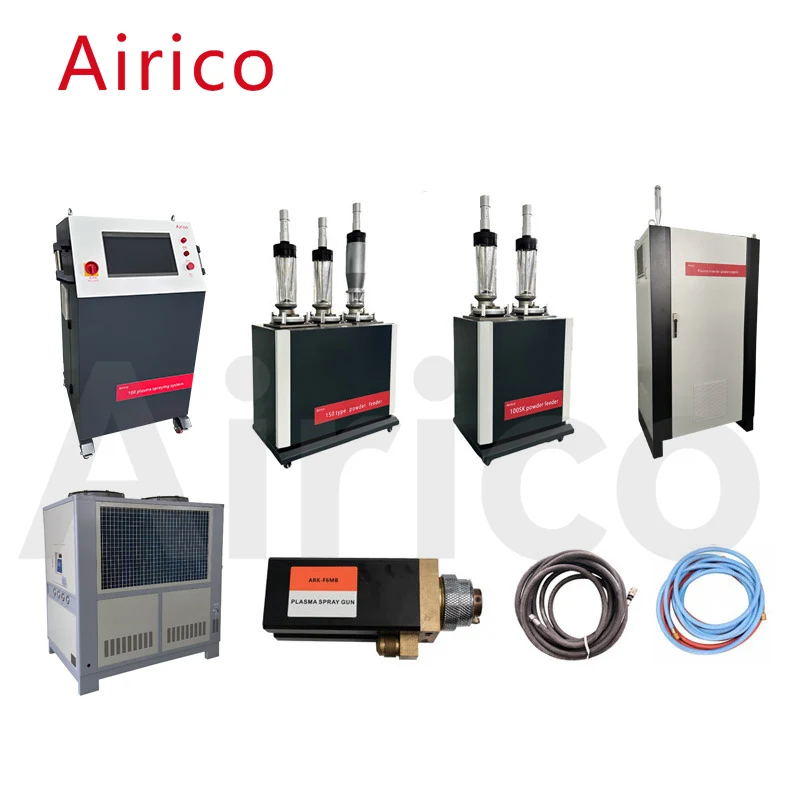

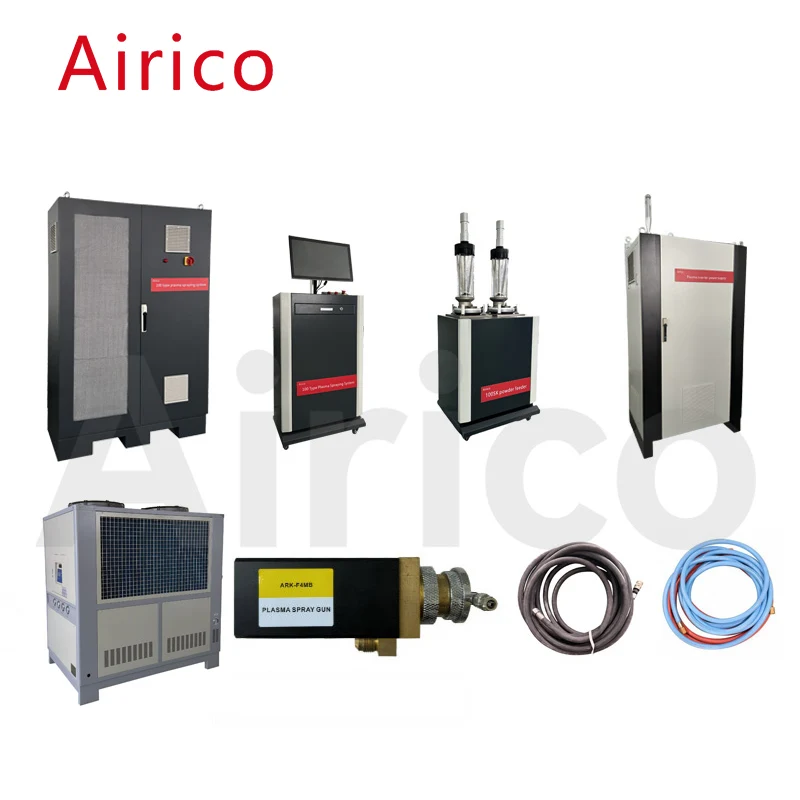

The Airico-180 control cabinet adopts the cutting-edge touch control terminal, simplifying the original button operation method. The Airico-180 control cabinet is the control center of the Airico-180 plasma spraying system, which uses advanced technology to automate the entire Airico-180 spraying system. All gases are controlled by a closed-loop mass flow meter, which solves the problem of unstable pressure and flow rate during operation, resulting in varying plasma flame flow and voltage, thereby stabilizing the output power. The Airico-180 control cabinet adopts a touch control terminal, which can record and save the parameters of spraying different powders in the form of formulas, and record them.
|
Number |
Project Content |
Basic parameters |
|
1 |
Input Voltage |
2P AC220V 50Hz |
|
2 |
Input power |
150V |
|
3 |
Control type |
PLC+MFC+Touch Screen |
|
4 |
Main gas type and pressure |
Nitrogen, argon（0.7-0.8Mpa） |
|
5 |
Secondary gas type and pressure |
Hydrogen（0.4Mpa） |
|
6 |
Nitrogen pressure |
0.5~0.8Mpa |
|
7 |
Gas usage method |
Argon, argon+hydrogen, nitrogen, nitrogen+hydrogen |
|
8 |
MFC Repeatability |
±0.2%F.S |
|
9 |
MFC Accuracy |
±1%F.S |
|
10 |
External dimensions |
1100x500x1250mm |
The Airico-180 supersonic high-speed flame spraying powder feeder is a device used to store spraying powder and deliver it to the spray gun according to process requirements. Nitrogen gas is used as the powder feeding gas, and the sprayed powder is transported to the outlet of the powder feeder through the atomization vibration of the powder feeding gas. It leaves the powder feeding bucket together with the powder feeding gas and enters the spray gun. Adjust the speed of powder feeding through the touch screen of the control cabinet.
|
Number |
Project |
Basic parameters |
|
1 |
Powder delivery method |
Scraper pneumatic type |
|
2 |
Single cylinder capacity |
3.0L |
|
3 |
Sending powder gas |
Nitrogen |
|
4 |
Powder delivery air pressure |
1.2-1.3Mpa |
|
5 |
Powder feed rate |
0-160g/min |
|
6 |
Powder delivery accuracy |
±1% |
|
7 |
Powder delivery gas flow rate |
400-800L/h |
|
8 |
External dimensions of powder feeder |
500x460x1300mm |
|
9 |
Weight of powder feeder |
50KG |
The DC power supply for the spray gun is China's excellent plasma inverter power supply, which is not only high in efficiency, good in heat dissipation, can work continuously, but also has a low failure rate. It adopts IGBT module, intelligent module control, water-cooled electrical module, and soft arc starting.
| Number | Project | Basic parameters |
| 1 | Input power supply | 3P AC380V、50Hz/60Hz |
| 2 | Rated output power | 180KW |
| 3 | Maximum no-load voltage | DC125V |
| 4 | Working current | 100-1800A |
| 5 | Working voltage | 30-125V |
| 6 | Current accuracy | 1% |
| 7 | Load rate | 90% |
| 8 | Power supply dimensions | 1510x1000x1070mm |
| 9 | Weight | 200KG |
The dual compressor drive reduces the overall volume of the machine and increases your space; Mainly used to achieve effective cooling of the spray gun and prolong the nozzle life.
|
Number |
Project |
Basic parameters |
||
|
1 |
Unit appearance |
1330x780x1310mm |
||
|
2 |
Circulating water tank capacity |
250KG |
||
|
3 |
Refrigeration capacity |
32.2KW |
||
|
4 |
Fluctuations in outlet water temperature |
5℃ |
||
|
5 |
Power supply |
3P AC380 50Hz/60hz |
||
|
6 |
Compressor |
Dual compressor |
Origin: Sanyo, Japan |
|
|
7 |
Outlet pressure |
4-8KG adjustable |
Effluent flow rate |
4m³/h |
|
8 |
External circulation pump |
Rated power 1.1KW |
Rated current 1.5A |
|
|
9 |
Refrigerant injection amount |
11kg |
Refrigeration media |
F22 |
|
10 |
Fan power |
85Wx2 |
||
|
11 |
Total input power |
13.5KW |
||
|
12 |
Weight |
450KG |
||
The Airico F6MB plasma spraying equipment is equipped with a gun for production type thermal spraying operations, with a maximum output power of 180KW. This type of spray gun has a high rated power and belongs to an internal powder feeding device. Therefore, in production environments, high powder feeding rated power can be used to shorten spraying time and reduce processing costs. The standard structure allows for quick hardware replacement. Various nozzles, electrodes, and powder ports are available to meet the requirements of spraying different materials.
|
Number |
Project |
Basic parameters |
|
1 |
Rated output power |
60KW |
|
2 |
Rated current |
100-1800A |
|
3 |
Working voltage |
30-100V |
|
4 |
External dimensions |
80x75x190mm |
|
5 |
Weight |
3.5KG |
