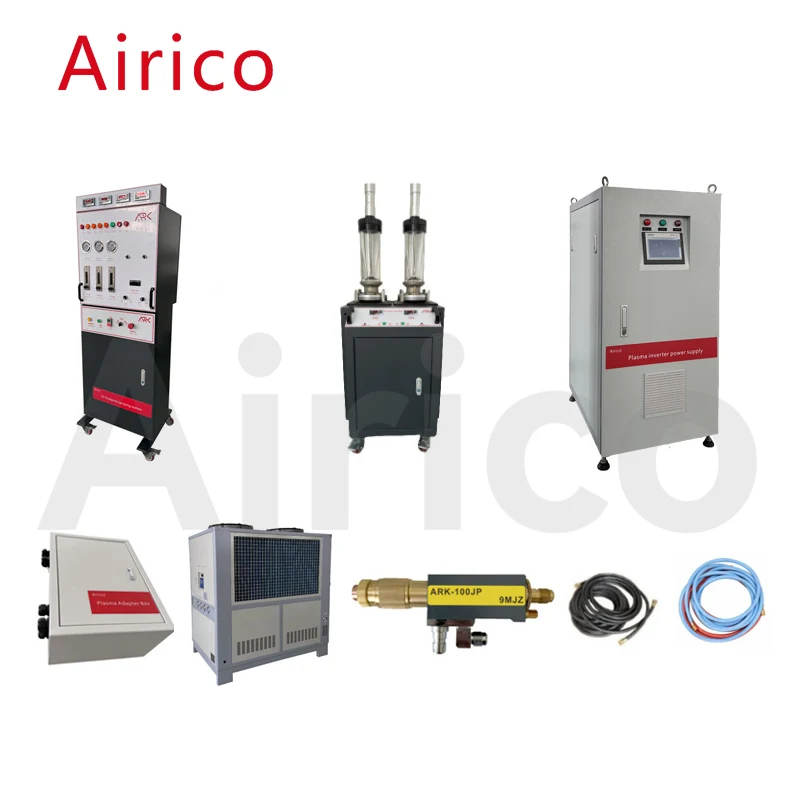

Used for regulating and controlling water, electricity, gas, and powder. It can monitor the entire system, and users can directly understand the system parameters during operation from the control cabinet, such as voltage and current. When the electricity and gas in the system do not meet the requirements, the system will automatically alarm to remind users to make corresponding adjustments. Adjust the temperature of the plasma arc by adjusting the current and voltage on the panel. Users can also control the gas flow rate and gas ratio by adjusting the main and secondary gases on the control panel, thereby changing the length of the plasma arc and flame velocity, and ultimately changing the velocity of the powder particles.
|
Number |
Project |
Basic parameters |
|
1 |
Input power supply |
AC220V、50Hz/60Hz |
|
2 |
Input power |
300W |
|
3 |
Control type |
PLA control+relay |
|
4 |
Main gas type and pressure |
Argon, nitrogen 0.6-0.8Mpa |
|
5 |
Maximum consumption of main gas |
2m³/h |
|
6 |
Secondary gas type and pressure |
Hydrogen, helium 0.25-0.4Mpa |
|
7 |
Air and pressure |
dry 0.5Mpa |
|
8 |
Gas usage method |
Argon, argon+hydrogen, nitrogen, nitrogen+hydrogen |
|
9 |
External dimensions of control cabinet |
400x700x1820mm |
|
10 |
Total weight of control cabinet |
130KG |
A device used to store spray powder and deliver it to the spray gun according to process requirements. The main gas of the spray gun is used as the powder feeding gas. The sprayed powder is conveyed to the outlet of the powder feeder through the rotation of the powder feeding scraper, and the powder leaves the powder feeding bucket together with the gas pressure and enters the spray gun. Adjusting the potentiometer on the control cabinet panel can adjust the speed of powder feeding.
|
Number |
Project |
Basic parameters |
|
1 |
Powder delivery method |
Scraper pneumatic type |
|
2 |
Double tube capacity |
6.0L |
|
3 |
Powder gas delivery |
Nitrogen |
|
4 |
Gas pressure for powder delivery |
1.1-1.3Mpa |
|
5 |
Powder feed rate |
0~160g、/min |
|
6 |
Powder delivery accuracy |
±1% |
|
7 |
Powder delivery gas flow rate |
400-800L/h |
|
8 |
External dimensions of powder feeder |
500x460x1300mm |
|
9 |
Weight of powder feeder |
50KG |
The plasma inverter power supply provides DC power for the spray gun, using IGBT modules, intelligent module control, water-cooled electrical modules, soft arc starting, small size, high efficiency, low power consumption, good heat dissipation, continuous operation, and low failure rate. It is currently an excellent plasma power supply in China.
|
Number |
Project |
Basic parameters |
|
1 |
Input power supply |
3P AC380V、50Hz/60Hz |
|
2 |
Rated output power |
96KV |
|
3 |
Maximum no-load voltage |
DC125V |
|
4 |
Working current |
100-1100A |
|
5 |
Working voltage |
30-100v |
|
6 |
Power characteristics |
Constant current source |
|
7 |
Current accuracy |
＜1% |
|
8 |
Load rate |
90% |
|
9 |
Power supply dimensions |
650x430x1600mm |
|
10 |
Weight |
200KG |
Mix the water and electricity of the plasma equipment and send it to the spray gun. At the same time, provide the high-frequency pulse voltage required for the spray gun to start the arc and detect the return water temperature and cooling water pressure of the spray gun. It is lightweight, flexible, and easy to drag. Good arc initiation performance, reducing the instantaneous current shock when the nozzle starts an arc.
|
Number |
Project |
Basic parameters |
|
1 |
Input Voltage |
AC220V50Hz/60Hz |
|
2 |
Rated power |
250W |
|
3 |
Control mode |
External control |
|
4 |
Output high-frequency voltage |
AC2500-3000 |
|
5 |
External dimensions |
610x480x340mm |
|
6 |
Weight |
30KG |
The dual compressor drive reduces the overall volume of the machine and increases your space; Mainly used to achieve effective cooling of the spray gun and prolong the nozzle life
|
Number |
Project |
Basic parameters |
||
|
1 |
Unit appearance |
1330x780x1310（mm） |
||
|
2 |
Circulating water tank capacity |
250KG |
||
|
3 |
Refrigeration capacity |
32.2KW |
||
|
4 |
Fluctuations in outlet water temperature |
5℃ |
||
|
5 |
Power supply |
3P AC380 50Hz/60Hz |
||
|
6 |
Compressor |
Dual compressor |
Origin: Sanyo, Japan |
|
|
7 |
Outlet pressure |
4-8Kg adjustable |
Effluent flow rate |
4m³/h |
|
8 |
External circulation pump |
Rated power 1.1KW |
Rated current 1.5A |
|
|
9 |
Refrigerant injection amount |
11Kg |
Refrigeration media |
F22 |
|
10 |
Fan power |
85Wx2 |
||
|
11 |
Total input power |
13.5KW |
||
|
12 |
Weight |
450KG |
||
Airico-3710 The Type A spray gun is used for production type thermal spraying operations, with a maximum output power of 100KW. This type of spray gun has a higher rate power, so it can use a high powder feeding rate power in production environments, shorten spraying time, and reduce processing costs. The standard structure allows for quick hardware replacement. Various nozzles, electrodes, and powder ports are optional to meet the requirements of spraying different materials.
|
Number |
Project |
Basic parameters |
|
1 |
Rated output power |
80KW |
|
2 |
Rated current |
100-1000A |
|
3 |
working voltage |
30-100V |
|
4 |
External dimensions |
80X75X190mm |
|
5 |
Weight |
3.5KG |
