Surface coating plays a vital role in protecting materials from wear, corrosion, and environmental damage while enhancing their aesthetic appeal. Among the advanced technologies in this domain, the Electric Arc Spray System stands out as a highly efficient and versatile method for applying metallic coatings.

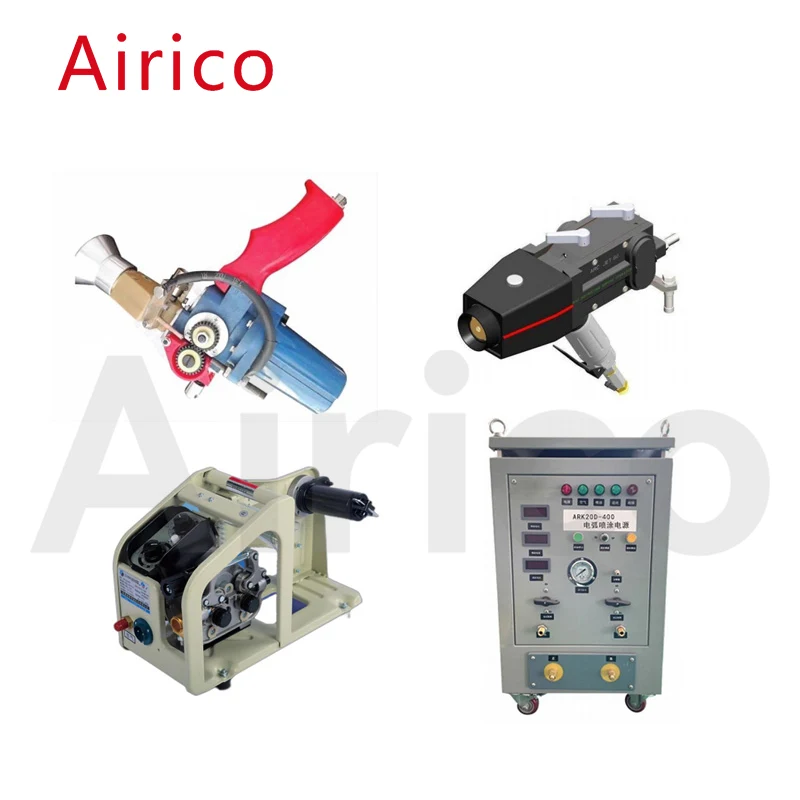

An Electric Arc Spray System is a thermal spray coating technique that uses an electric arc to melt metal wires and project the molten material onto a prepared surface. This system is widely used to apply coatings that improve durability, resistance, and performance of components in challenging environments. The process is cost-effective and provides high-quality coatings for a variety of materials, including steel, aluminum, and other alloys.
1. Wire Feed Mechanism:
- Two consumable metal wires are continuously fed into the spray gun.
2. Electric Arc Formation:
- An electric arc is generated between the two wires, melting the material at their tips.
3. Atomization and Propulsion:
- Compressed air is used to atomize the molten metal into fine particles and propel them onto the substrate at high velocity.
4. Coating Deposition:
- The particles solidify upon contact, forming a dense and durable coating layer.
- High Efficiency:
- Capable of depositing coatings at high rates, making it ideal for large-scale industrial applications.
- Cost-Effective:
- Uses inexpensive consumable wires and requires minimal setup compared to other thermal spray methods.
- Versatility:
- Can apply a wide range of materials, including corrosion-resistant alloys, conductive coatings, and wear-resistant metals.
- Environmentally Friendly:
- Produces minimal waste and does not involve hazardous chemicals or byproducts.
- Customizable Coatings:
- Allows precise control over coating thickness and properties, ensuring optimal performance for specific applications.
1. Corrosion Protection:
- Widely used for coating pipelines, bridges, and marine structures to prevent rust and extend service life.
2. Wear Resistance:
- Ideal for enhancing the durability of components such as turbine blades, gears, and rollers subjected to high friction.
3. Thermal Barrier Coatings:
- Provides insulation and heat resistance for parts in high-temperature environments, such as engine components and exhaust systems.
4. Electrical Conductivity:
- Applied to create conductive coatings for electronic components, grounding systems, and battery connectors.
5. Aesthetic Finishes:
- Offers decorative coatings with metallic finishes for architectural elements, sculptures, and consumer products.
The Electric Arc Spray System is a game-changing technology in the field of surface coatings, offering unmatched efficiency, versatility, and cost-effectiveness. Its ability to enhance the performance and longevity of components across industries makes it an indispensable tool in modern manufacturing and maintenance. By understanding its principles and benefits, businesses can harness this innovative method to achieve superior results in corrosion protection, wear resistance, and more.
Suzhou Airico Machinery Equipment Co., Ltd. is a technology innovation enterprise specializing in equipment manufacturing and research and development. Our main products include plasma spraying equipment, supersonic spraying equipment, arc spraying equipment, etc. We are one of the few manufacturers that can independently produce arc spraying equipment, plasma spraying equipment, and supersonic spraying equipment in China. Learn more about what we offer by visiting our website at https://www.airicomachinery.com/. For questions or support, contact us at x719592654@163.com.
